Описание

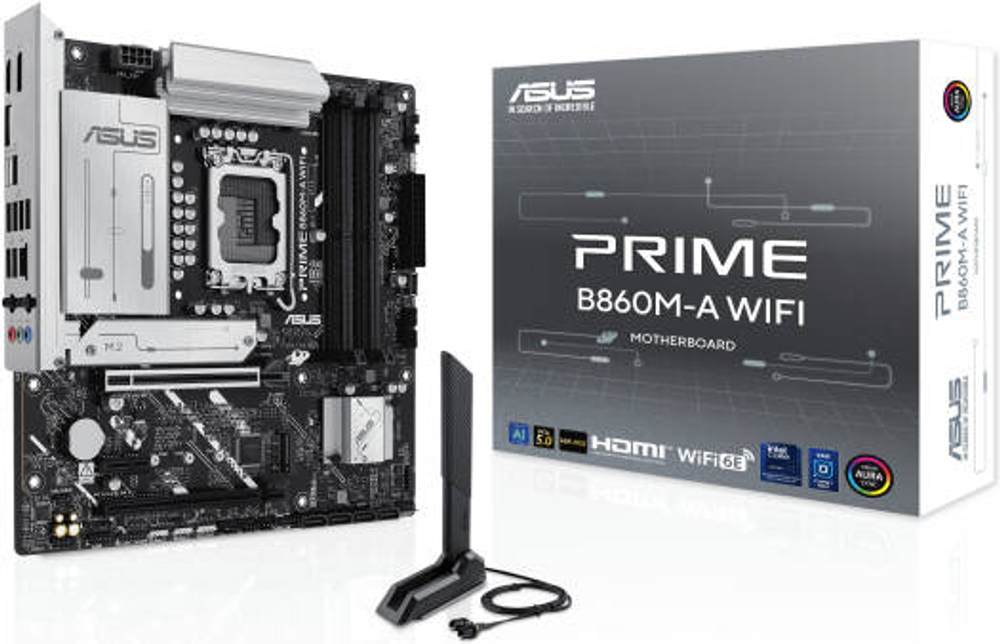

| Model | PRIME B860M-A WIFI |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851. Intel® Turbo Boost Technology 2.0/3.0. |
| Chipset | Intel® B860 Chipset |
| Memory | 4 x DIMM slots, up to 256GB DDR5, 8666+ MT/s (OC), Dual Channel, supports XMP, AEMP III. |
| Graphics | 2 x DisplayPort (4K@60Hz), 1 x HDMI™ (4K@60Hz). |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1. |
| Storage | 2 x M.2 slots (PCIe 5.0/4.0), 4 x SATA 6Gb/s. |
| Ethernet | Realtek 2.5Gb Ethernet, ASUS LANGuard. |
| Wireless amp; Bluetooth | Wi-Fi 6E (2x2, 2.4/5/6GHz), Bluetooth® 5.3. |
| USB | Rear: 1 x USB 20Gbps (Type-C®), 1 x USB 10Gbps, 2 x USB 5Gbps, 4 x USB 2.0. Front: 1 x USB 10Gbps (Type-C®), headers for additional USB ports. |
| Audio | Realtek 7.1 Surround, up to 24-bit/192 kHz playback, audio shielding, premium capacitors. |
| Back Panel I/O Ports | USB: 1 x USB 20Gbps (Type-C®), 1 x USB 10Gbps, 2 x USB 5Gbps, 4 x USB 2.0; 2 x DisplayPort, 1 x HDMI™, Ethernet, Wi-Fi module, 3 x audio jacks. |
| Internal I/O Connectors | 1 x 24-pin main power, 1 x 8-pin CPU power, 2 x M.2 slots, 4 x SATA ports, multiple fan headers, USB headers, RGB headers, and more. |
| Special Features | ASUS 5X PROTECTION III, Q-Design, Thermal Solutions, EZ DIY features, Aura Sync. |
| Software Features | Armoury Crate, Fan Xpert 2+, Norton 360 (60 Days), WinRAR (40 Days). |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS with ASUS EZ Flash and CrashFree BIOS. |
| Accessories | 2 x SATA cables, ASUS WiFi Q-Antenna, M.2 screws, quick start guide. |
| Operating System | Windows 11 (22H2+), Windows 10 (21H2+). |
| Form Factor | Micro-ATX, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm). |
