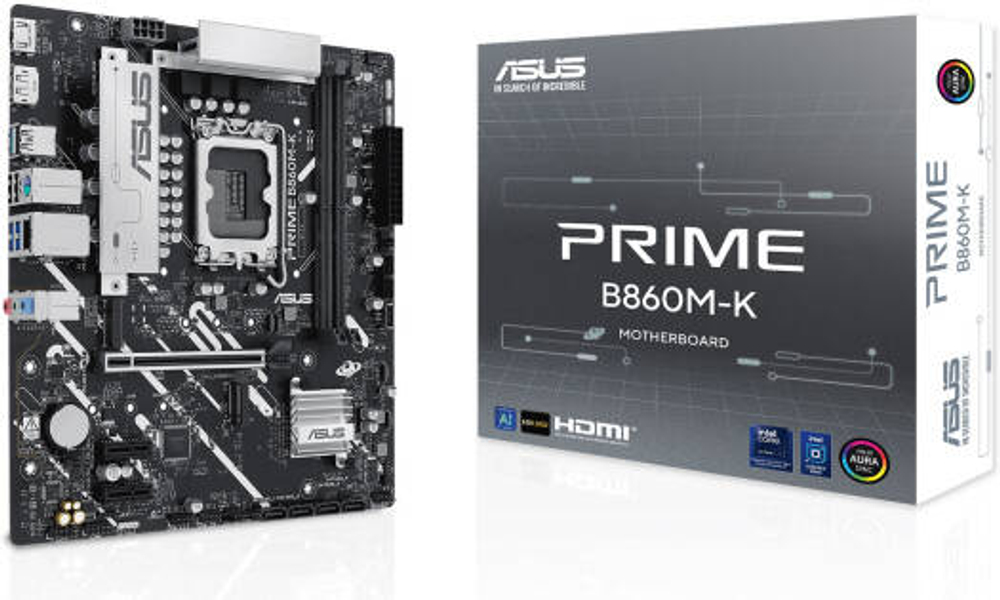

| Model | PRIME B860M-K |
| CPU |
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to ASUS support for the CPU support list. |
| Chipset | Intel® B860 Chipset |
| Memory |
2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered Supports Intel® Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile III (AEMPIII) |
| Graphics |
1 x DisplayPort (max. 4K@60Hz) 1 x HDMI™ port (max. 4K@60Hz) |
| Expansion Slots |
Intel® Core™ Ultra Processors: 1 x PCIe 4.0 x16 slot Intel® B860 Chipset: 2 x PCIe 4.0 x1 slots |
| Storage |
2 x M.2 slots (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4) 4 x SATA 6Gb/s ports Supports RAID 0/1/5/10 |
| Ethernet |
1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| USB |
Rear: 1 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 3 x USB 2.0 (Type-A) Front: 1 x USB 5Gbps (Type-C), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC Supports up to 24-bit/192 kHz playback Audio shielding and premium capacitors |
| Back Panel I/O Ports |
1 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 3 x USB 2.0 (Type-A) 1 x DisplayPort, 1 x HDMI™, 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan headers, power connectors, storage connectors, USB headers, RGB headers, and various system panel headers |
| Special Features |
ASUS 5X PROTECTION III (DIGI+VRM, LANGuard, Overvoltage Protection, etc.) ASUS Q-Design (Q-DIMM, Q-LED Core, etc.) Aura Sync (RGB header and Addressable Gen2 headers) |
| Software Features |
Armoury Crate (Aura Sync, Fan Xpert 2+) ASUS AI Advisor Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS Supports ASUS EZ DIY features (EZ Flash, CrashFree BIOS 3, etc.) |
| Accessories |
2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 anchor package |
| Operating System | Windows 11 (22H2 amp; later), Windows 10 64-bit (21H2 amp; later) |
| Form Factor | micro-ATX, 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm) |
