Описание

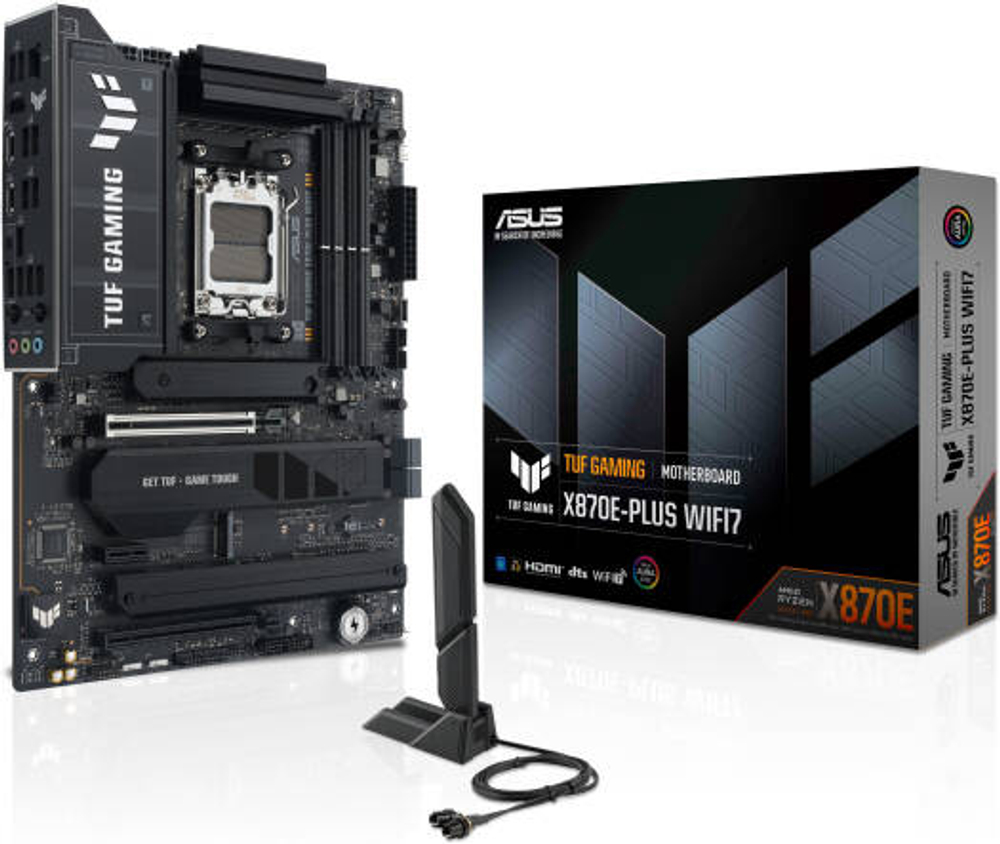

| Model | TUF GAMING X870E-PLUS WIFI7 |
| CPU Support | AMD Socket AM5 (Ryzen 9000/8000/7000 Series) |
| Chipset | AMD X870E |
| Memory | 4×DIMM, up to 256GB DDR5, up to 8000+MT/s (OC), ECC/Non-ECC, EXPO, AEMP |
| Graphics | 1×HDMI 2.1, 2×USB4 Type-C (DisplayPort 1.4a), supports 4K@60Hz |
| Expansion Slots | 1×PCIe 5.0 x16 (9000/7000), 1×PCIe 4.0 x16 (8000), 1×PCIe 4.0 x16 (chipset), 1×PCIe 3.0 x1 |
| Storage | 4×M.2 (PCIe 5.0/4.0), 4×SATA 6Gb/s, RAID 0/1/5/10 (depends on CPU) |
| Ethernet | Realtek 2.5Gb LAN, TUF LANGuard |
| Wireless | Wi-Fi 7 (2x2, 2.4/5/6GHz), Bluetooth v5.4 |
| Rear USB | 2×USB4 (Type-C), 3×USB 10Gbps (Type-A), 4×USB 5Gbps (Type-A), 4×USB 2.0 |
| Front USB | 1×USB 20Gbps (Type-C, 30W PD), 1×USB 5Gbps header, 2×USB 2.0 headers |
| Audio | Realtek ALC1220P 7.1 HD Audio, SNR 120dB playback, 113dB recording, 32-bit/192kHz (not 7.1), premium capacitors, de-pop circuit |
| Back I/O Ports | USB ports (as above), HDMI, Wi-Fi module, LAN, 3×audio jacks, BIOS FlashBack |
| Internal Headers | CPU/Chassis fan headers, AIO pump, 24-pin amp; dual 8-pin power, M.2 slots, SATA, USB, Clear CMOS, RGB, Front Audio, Thermal sensor |
| Special Features | ASUS TUF Protection, Q-Design, M.2 heatsinks, BIOS FlashBack, Aura Sync, USB Wattage Watcher |
| Software | Armoury Crate, AI Advisor, Fan Xpert 4, USB Wattage Watcher, TurboV Core, DTS Audio, Norton (trial), WinRAR (trial) |
| BIOS | 256Mb UEFI AMI BIOS, AI Overclocking, EZ Flash, CrashFree BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2×SATA cables, WiFi antenna, M.2 screws amp; rubber, TUF sticker, quick start guide |
| Operating System | Windows 11 |
| Form Factor | ATX, 30.5 × 24.4 cm |
